Sugar Beets 2016

The 2016 Sugar Beets Dataset Recorded at Campus Klein Altendorf in Bonn, Germany

Abstract: In agriculture robotics domains, relevant datasets are often hard to obtain, as dedicated fields need to be maintained and the timing of the data collection is critical. In this proposed dataset paper, we present a large-scale agricultural robot dataset for plant classification as well as localization and mapping that covers the relevant growth stages for robotic intervention and weed control. We used a readily available agricultural field robot to record the dataset on a sugar beet farm near Bonn in Germany over a period of three months in spring 2016. On average, we recorded data three times per week, starting at the emergence of the plants and stopping at the state when the field was no longer accessible to machinery without damaging the crops. The robot carried a 4-channel multi-spectral camera and a RGB-D sensor to capture detailed information about the plantation. Multiple lidar and GPS sensors as well as wheel encoders provided measurements relevant to localization, navigation, and mapping. Thus resulted in around 5 TB of data. All sensors had been calibrated before the data acquisition campaign. In addition to the data recorded by the robot, we provide lidar data of the field recorded using a terrestrial laser scanner. We believe this dataset will help researchers to develop autonomous systems operating in agricultural field environments.

The complete dataset can be downloaded here: Complete Dataset
Software tools to access the dataset: pybonirob
To download all the raw data as a batch, use the following scripts: Download scripts

Example Images/Photos

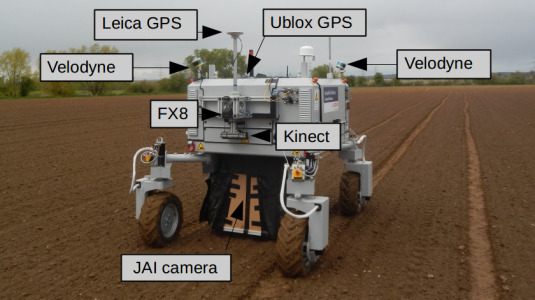

sensor_setup_tagged-h300
gpsTrack-h300
wp1_bonirobAtCKA01_mod-h300

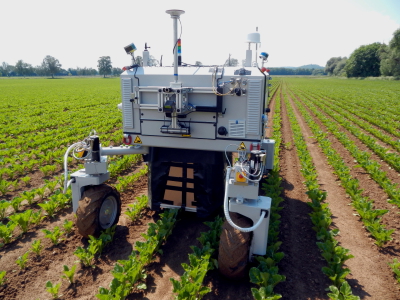

wp1_bonirobAtCKA02_mod-h300
labeledimages_org-h300

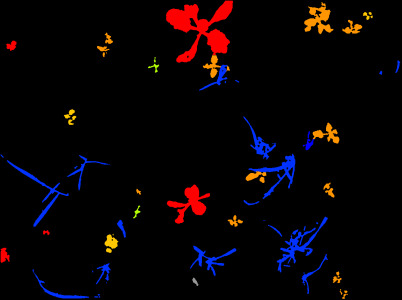

labeledimages-h300
File Structure: The zip archive has the following file structure:
files

License:
This datasets are released under the Creative Commons license CC BY-SA 4.0

Citation:
If you use the datasets for your research, please cite the following paper:

@article{chebrolu2017ijrr,
title = {Agricultural robot dataset for plant classification, localization and mapping on sugar beet fields},
author = {Nived Chebrolu and Philipp Lottes and Alexander Schaefer and Wera Winterhalter and Wolfram Burgard and Cyrill Stachniss},
journal = {The International Journal of Robotics Research},
year = {2017}
doi = {10.1177/0278364917720510},
}
